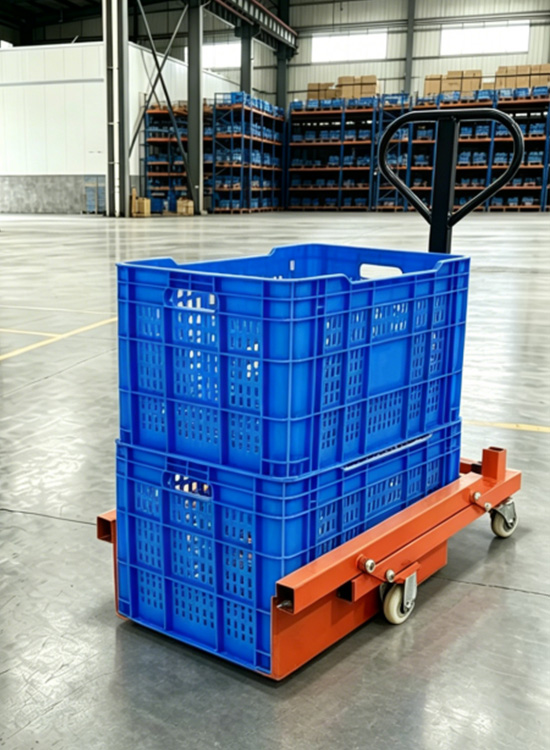

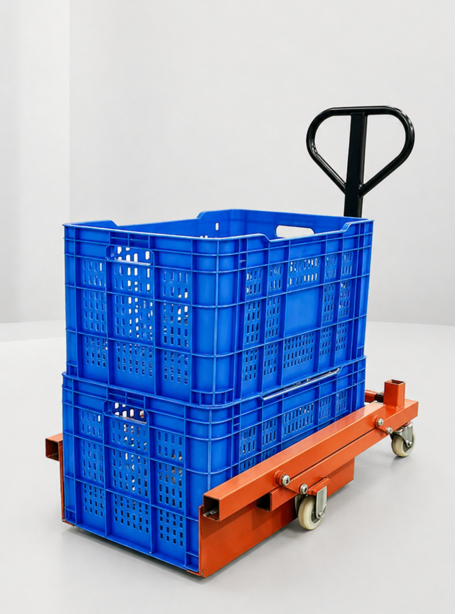

The PH Type Crate Trolley produced by Hebei ByaulPro Lifting Equipment Co., Ltd. is specially designed for transporting plastic turnover boxes and is widely used in factories, warehouses, supermarkets and other material handling scenarios. Unlike traditional handling tools, this trolley can directly lift and carry plastic turnover boxes without additional auxiliary equipment. The entire handling process can be completed by a single operator, which greatly improves work efficiency and reduces labor input.
Built with a high-strength Q235 steel frame, this trolley can be easily inserted under the base of turnover boxes for efficient lifting and transportation. It features a handle-controlled lifting system instead of a foot pedal, allowing smooth lifting and lowering of goods simply by operating the handle. The U-shaped fork supports adjustable width, enabling the trolley to fit different sizes of turnover boxes. One trolley can match various box specifications, expanding application scope and helping users reduce equipment investment costs.
|
Model |
PH-100 |
PH-200 |
|
Rated Load |
100 kg |
200 kg |
|
Suitable Width Range |
320-600 mm |
320-600 mm |
|
Suitable Length |
600 mm |
600 mm |
|
Wheel Type |
Nylon Wheel |
Nylon Wheel |
Adjustable Fork Width
The fork spacing of this trolley can be adjusted freely according to the actual size of turnover boxes, with a width adjustment range from 320 mm to 600 mm. It provides strong compatibility for different box types and meets diversified handling needs in various working scenarios.
Handle-Controlled Lifting
Different from foot-pedal lifting models, the PH Type Crate Trolley adopts handle lifting and lowering control, which is more labor-saving and hygienic. Operators can complete lifting and unloading actions easily by controlling the handle, avoiding bending or stepping, making operation more comfortable and efficient.
Nylon Wheel Design:
The base is fitted with nylon casters that rotate flexibly, effectively protecting the floor during transport. Users may also opt to switch to silent wheels, if desired, to accommodate noise-sensitive environments.
The whole body is coated with anti-rust treatment, featuring strong anti-corrosion and anti-rust performance. It can maintain stable performance in humid environments and extend the service life.
Featuring a thickened square tube design, the overall structure is more robust and stable, ensuring greater stability during handling.
The 360-degree swivel casters ensure flexible and smooth movement, significantly enhancing user convenience.
