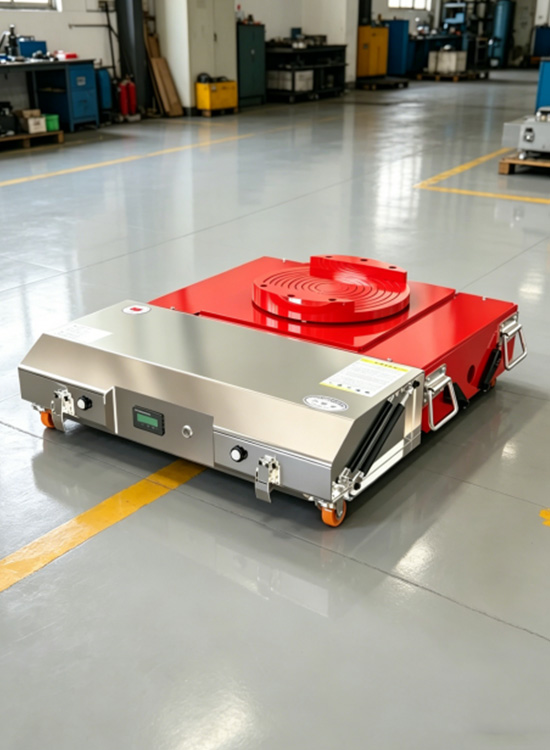

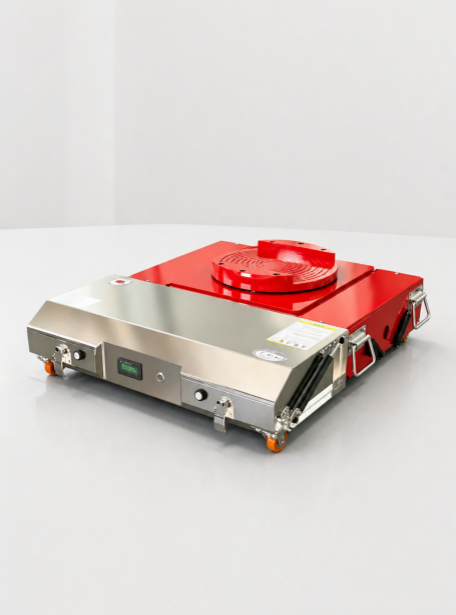

The Powered Moving Skate manufactured by Hebei ByaulPro Lifting Equipment Co., Ltd. is a professional-grade material handling tool designed specifically for moving heavy machinery and equipment within industrial environments. Available in a variety of models, this product is capable of meeting diverse requirements, including equipment relocation and cargo handling.
Built for heavy-duty material handling tasks, the Powered Heavy-Duty Load Skate is a sturdy and long-lasting transport trolley. Its main frame is manufactured from Q235 steel, while the top plate uses Q355 steel, delivering reliable safety and stable load-bearing performance. Equipped with a dual-motor driving system, it runs steadily and can be maneuvered flexibly, making it an essential tool for industrial material handling operations.
|
Model |
Capacity |
Size |
Wheel Size |
Motor Power |
Battery |
|
PLS-10 |
10 t |
720 * 640 * 170 mm |
90 * 135 mm |
2 * 500w |
48 V 60 Ah |
|
PLS-20 |
20 t |
720 * 640 * 170 mm |
90 * 135 mm |
2 * 750w |
48 V 60 Ah |
|
PLS-25 |
25 t |
720 * 640 * 170 mm |
90 * 135 mm |
2 * 1000w |
48 V 60 Ah |
|
PLS-30 |
30 t |
770 * 640 * 190 mm |
90 * 135 mm |
2 * 1000w |
48 V 60 Ah |
|
PLS-40 |
40 t |
810 * 810 * 190 mm |
90 * 135 mm |
2 * 1500w |
48 V 120 Ah |
|
PLS-50 |
50 t |
810 * 800 * 210 mm |
120 * 145 mm |
2 * 2000w |
48 V 120 Ah |
|
PLS-60 |
60 t |
810 * 800 * 210 mm |
120 * 145 mm |
2 * 3000w |
48 V 120 Ah |
Remote Control Capability:
Powered by electricity, this product is operated via a wireless remote control with an effective range of up to 100 meters. This moving skate can easily maneuver in and out of confined spaces, effectively meeting material handling requirements in compact environments while simultaneously ensuring operator safety.
Dual-Motor Drive System:
Equipped with a dual-motor drive system and dual-channel controllers, this device supports independent left and right control. This design supports 360-degree in-place rotation, making the operation easier and more user-friendly.
High-Hardness Polyurethane Wheels:
Adopting high-hardness polyurethane (PU) wheels, the equipment delivers stable movement and protects the floor effectively. It greatly avoids ground damage caused by heavy load pressure.
The top plate supports 360-degree free rotation, which makes angle adjustment convenient during material handling. It also adopts an anti-slip tread design to improve stability during transportation.
This unit is equipped with a trip switch to prevent equipment damage caused by overloads, short circuits and other electrical faults, effectively extending the service life of the product.
Adopting a Microzone C6/C7 or industrial remote control system, the device provides stable signal, easy operation and a long control distance up to 100 meters, greatly improving work efficiency.
