Hebei ByaulPro Lifting Equipment Co., Ltd. presents the Straight Moving Skate, a professional heavy‑handling machine built for stable, straight‑line transportation of heavy machinery and equipment in industrial sites. Available in multiple load capacities, it supports efficient equipment relocation, machine transfer, and heavy cargo handling across workshops, factories, and maintenance facilities.

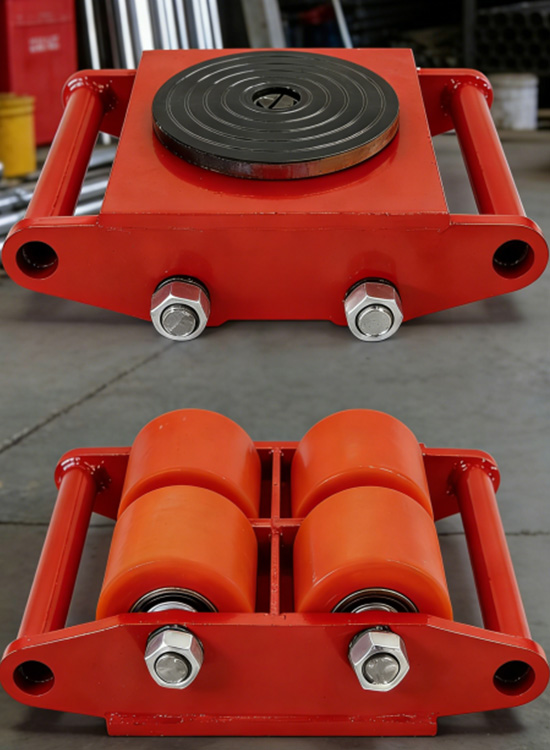

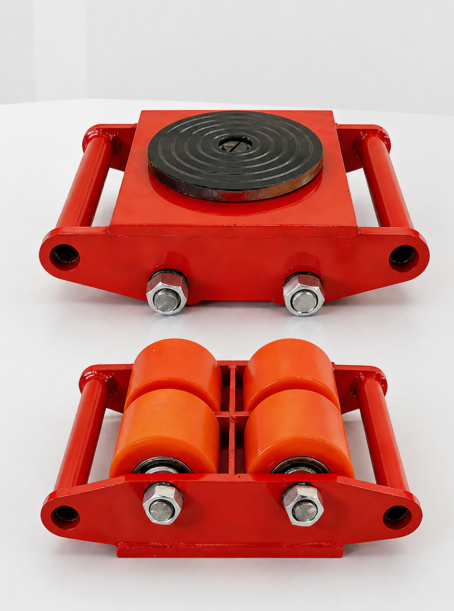

The Straight Moving Skate is a high-capacity transport platform specifically engineered to facilitate reliable linear movement. Its main frame is constructed from high-strength Q235 steel, ensuring exceptional load-bearing capacity, superior structural rigidity, and a long service life. Capable of executing smooth and fluid forward and backward movements with minimal operational noise, this trolley serves as an ideal solution for the long-distance linear transfer of heavy loads.
|
Model |
Rated Load |
Number of Rollers |
Net Weight |
|
|
Rubber Roller |
Steel Roller |
|||
|
ST-6 |
6 t |
4 |
9.5 kg |
14 kg |
|
ST-8 |
8 t |
6 |
14 kg |
19.5 kg |
|
ST-12 |
12 t |
8 |
18 kg |
25.5 kg |
|
ST-15 |
15 t |
9 |
19 kg |
27.5 kg |
|
ST-18 |
18 t |
12 |
23.5 kg |
36 kg |
|
ST-24 |
24 t |
16 |
31.5 kg |
46 kg |
|
ST-32 |
32 t |
20 |
37 kg |
57.5 kg |
Stable Straight‑Line Movement:
This straight moving skate adopts a fixed‑direction wheel structure, ensuring stable straight‑line travel without deviation. It is specially designed for linear handling tasks, making machine relocation and cargo transport safer and more efficient.
360° Swivel Top Platform:
The top features a load-bearing disc capable of freely rotating 360 degrees. This allows for flexible adjustment of the load's angle and orientation during lifting operations without the need to reposition the main body of the equipment, thereby significantly enhancing on-site construction convenience and adaptability.
High‑Hardness Wear‑Resistant Wheels：
Adopts high‑hardness polyurethane (PU) wheels, steel wheels, or rubber wheels, providing strong pressure resistance, wear resistance, and floor protection. The wheels reduce friction effectively, ensuring stable movement without damaging epoxy, concrete, or painted factory floors.
The top bearing plate features an anti‑slip texture to increase friction and prevent cargo sliding during straight movement.
The whole structure is sturdy and impact‑resistant, with strong stability under full load.
The compact and low‑profile design allows it to be used in narrow spaces and under equipment easily, meeting various industrial heavy‑load handling demands.
