Hebei ByaulPro Lifting Equipment Co., Ltd. proudly introduces this specialized Heavy-Duty Hydraulic Toe Jack. Meticulously engineered, this product is designed to address the unique challenge of ultra-low-clearance lifting—a task that standard jacks are unable to handle. Compared with conventional jacks, this model adopts a slim claw design, allowing accurate and steady lifting even in narrow and limited working spaces.
This Heavy-Duty Hydraulic Toe Jack is a precisely designed industrial lifting tool that has passed global ISO and CE safety standards. The equipment is made of high-strength Q235 steel and is manufactured using an integral welding process. It has been rigorously tested with a 125% overload to ensure its reliability. It boasts excellent load-bearing capacity and a compact body design, thus ensuring reliable operation performance even in narrow working spaces.
|
Model |
Toe Capacity |
Min.Toeheight |
Max.Toeheight |
Min.Headheight |
Max.Headheight |
Base Size |
Weight |
|
T-5 |
5 Ton |
25 mm |
230 mm |
368 mm |
573 mm |
203*140 mm |
21 kg |
|
T-10 |
10 Ton |
30 mm |
260 mm |
420 mm |
650 mm |
190*170 mm |
32 kg |
|
T-25 |
25 Ton |
58 mm |
273 mm |
505 mm |
720 mm |
377*210 mm |
105 kg |
Integrated hydraulic unit:

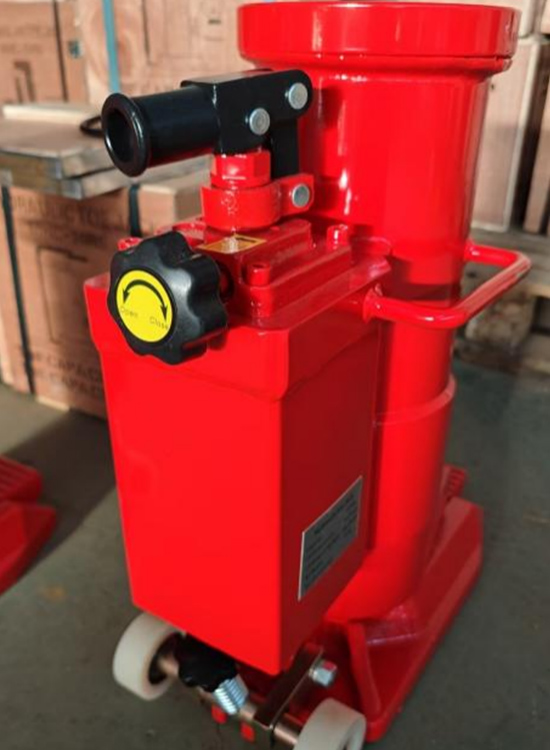

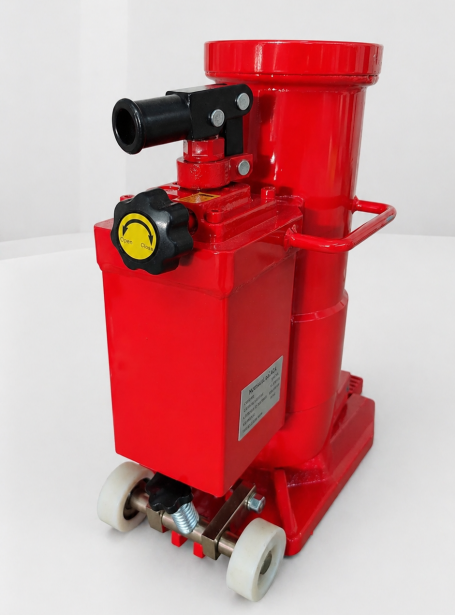

This jack is equipped with an integrated side-mounted hydraulic unit, which can save space. This design reduces the equipment's footprint and allows it to operate freely in narrow and confined spaces.
360° rotatable body:
The body of this jack can achieve 360° full rotation. Users do not need to adjust the placement angle of the equipment, and can adapt to various space layouts.
Simple reset operation:
After the task is completed, simply adjust the side-mounted relief valve to start the descent process. By rotating this valve, users can precisely control the descent speed and ensure that the equipment descends precisely and smoothly.
Both the top and the toe are equipped with anti-slip designs, aiming to enhance friction and improve safety.
This product adopts a fully welded structure, ensuring smooth operation and reducing the risk of oil leakage, thereby effectively enhancing the durability of the product.
The ergonomic-designed pressure relief valve knob is easy to operate, ensuring a smooth descent process and easy control, making it both safe and convenient.
