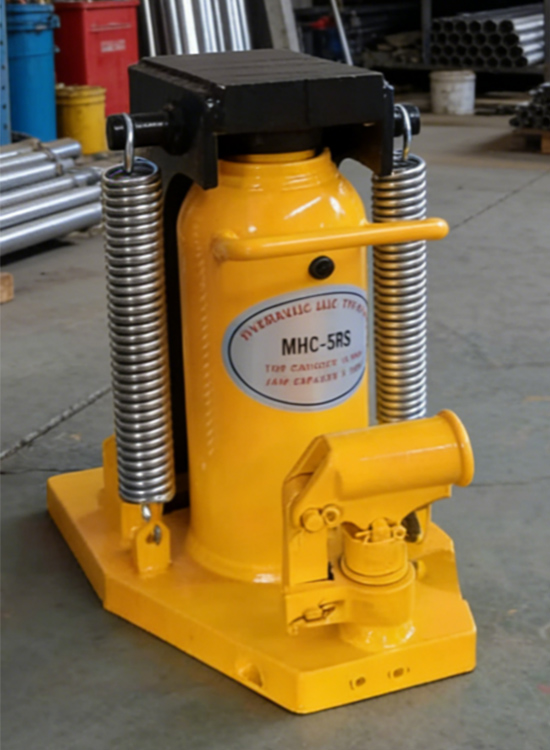

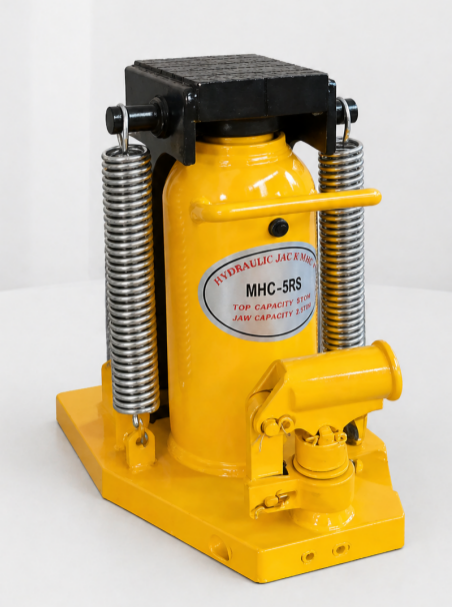

Hebei ByaulPro Lifting Equipment Co., Ltd. manufactures high-strength hydraulic systems and reinforced claw-top structures for Hydraulic Claw Jacks. These jacks have the functions of claw lifting and top lifting, with stable force application and smooth operation. This product is suitable for lifting and transporting heavy equipment in industries such as heavy machinery, bridge engineering, and logistics warehousing. It is an efficient and reliable industrial lifting tool.
The Hydraulic Claw Jack manufactures by Hebei ByaulPro Lifting Equipment Co., Ltd. is a high-quality lifting product. This model has ISO and CE and other internationally recognized certifications. The main body is welded from Q235 steel and has passed a 125% Gn load test, ensuring structural stability, reliability of strength, and full compliance with the rated lifting standards.
|
Model |
Rated Load |
Min. Height |
Lifting Height |
Claw Height |
|
MHC-2.5 |
2.5 t |
225 mm |
124 mm |
16 mm |
|
MHC-5 |
5 t |
270 mm |
150 mm |
20 mm |
|
MHC-10 |
10 t |
310 mm |
165 mm |
25 mm |
|
MHC-15 |
15 t |
340 mm |
150 mm |
30 mm |
|
MHC-25 |
25 t |
365 mm |
170 mm |
35 mm |
Stable and durable steel structure, long product life:
The main body is welded with Q235 steel, with an ultimate tensile strength of up to 375 MPa, ensuring the safe and stable operation of load-bearing components.
Safe and reliable hydraulic system, with smooth lifting:
By utilizing the hydraulic principle, it provides lifting force, and the lifting process is smooth and effortless.
Dual lifting design (claw and top type) for wide applicability:
This claw jack features both its top surface and claw as load-bearing surfaces, allowing for flexible application in various scenarios. The top surface is suitable for lifting large transport and heavy equipment, with a maximum lifting height of 545 mm; the claws are suitable for lifting in narrow gaps and other low-lying situations, with a minimum lifting height of 16 mm.
Easy to operate, low maintenance cost and high efficiency:
The operation is simple and no professional training is required. Follow the product manual for operation. One person can quickly complete the lifting operation. The core components are durable. The product uses PU material seals, which have a longer service life than rubber materials. Daily maintenance is convenient. Just keep the product dry and clean, and check and replace the seals and hydraulic oil as needed.
The top and claw load-bearing surfaces feature anti-slip design to increase friction and effectively improve operational safety.
It is equipped with a retractable spring on the side, which automatically retracts during the descent process, making the operation very convenient.
The manual pump assembly can rotate freely in 360 degrees, enabling flexible adaptation to various narrow spaces.
The bottom reinforcing ribs effectively prevent the base from deforming due to uneven force distribution during use.
